Integration solution InterStorage for SPF

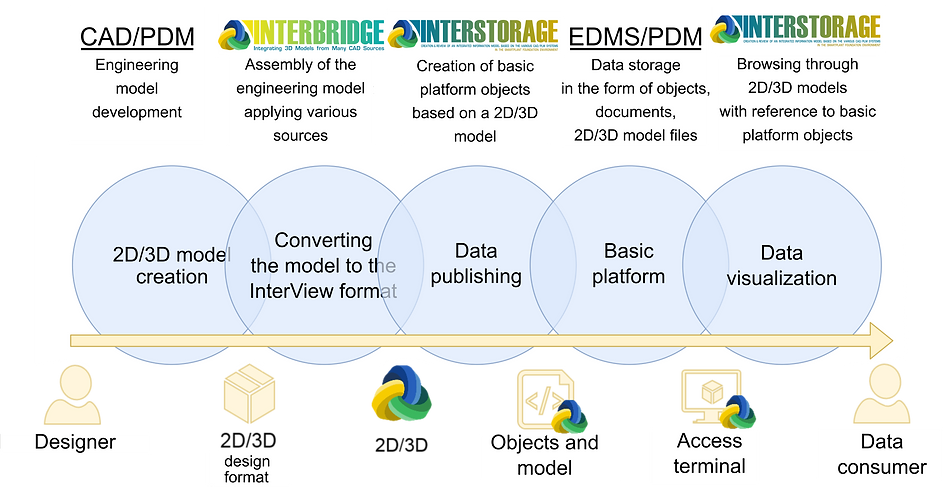

InterStorage is a technology of integration solutions between CAD/PDM systems designed for development of engineering data, and EDMS/PLM, in which engineering data is accumulated for convenient presentation of information to end users.



NEOLANT Service is the copyright owner of the integration solution InterStorage for SPF.



The InterStorage technology allows users to significantly expand capabilities of EDMS/PLM, making them more receptive to engineering data formats and providing the high quality of all information submitted regardless of the model development technology used by designers. Application of InterStorage is especially necessary when forming an unified model of a large object, since its design and creation of a 3D model always involves application of multiple systems from different manufacturers.




InterBridge applied together with InterStorage supports data transformation of most popular CAD/PLM platforms.

InterStorage implementation in  Intergraph SmartPlant Foundation EDMS/PLM extends platform's functions to the following procedures:

  • collection and publication of an unified information model from various CAD/PLM in the SmartPlant Foundation repository, taking into account both graphic and semantic data;

  • quick viewing of a unified model of an arbitrarily large object (or objects) implemented directly in SmartPlant Foundation environment;

  • provision of additional visualization tools for the whole object, its elements, and data chosen manually or based on certain criteria using SmartPlant Foundation;

  • automated collision search in a unified model based on various CAD/PLM in the SmartPlant Foundation environment.
